9005 HID Xenon Car Headlight Relay Harnes Kit

The need Relay Harness Kit to add HID/Xenon Headlights to your Base/Halogen Model. Fits 9005 Bulb applcations, such as 2015+ Dodge Charger & Challenger

REALITY CHECK: Customers often ask, Do I really need a harness? Yes! A relay harness is designed to deliver steady voltage to your HID ballasts directly from the car battery. Nobody likes a flickering headlight, so why risk it? Factory headlight outputs are really only designed to power a halogen light bulb, not an HID ballast.

DON’T SKIMP: As one of the most important parts in any HID lighting upgrade; don’t skimp out when it comes to your wiring. It doesn’t matter how good your ballasts are. how good your bulbs are. If your harness is a piece of crap: when it gives out your headlights are gonezo. The Morimoto HD Relay harness is easily worth the premium price compared to cheaper alternatives.

PLUG N PLAY: The layout of the harness makes it easy to install. With just a few simple connections, even your mom could set this thing up! Wire lengths are long enough to be used in everything from compact cars to SUVs and it’s designed to be 100% plug and play (no cutting or splicing needed). Its connections are explained in this video.

COMPATIBLE: The HD relay can be used for low beams, high beams, or fog lights on most vehicles. The harness uses industry-standard outputs for compatibility with 99% of ballasts out there, and all of the ones we offer here at TRS. Note, if your vehicle has a can-bus system or a finicky pulsed headlight circuit

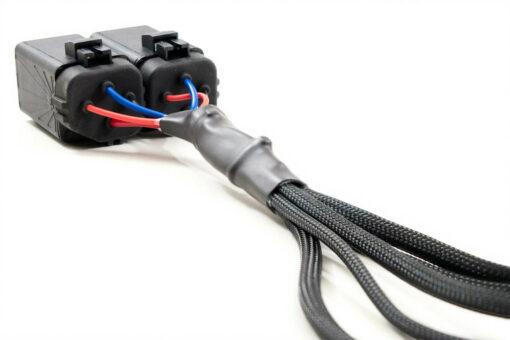

FAIL-SAFE: Unlike most generic harnesses out there that rely on a single low-quality relay to power both headlights, the Morimoto Harness utilizes one relay per side- so if one did happen fail, you wouldn’t be left completely in the dark. Each 40A relay is completely sealed against the elements using ribbed silicone upper and lower seals, and has an flywheel diode for back-EMF protection. Every other connection harness-wide is sealed with the proper silicone grommets. Live somewhere with weather that regularly sucks? No problem.

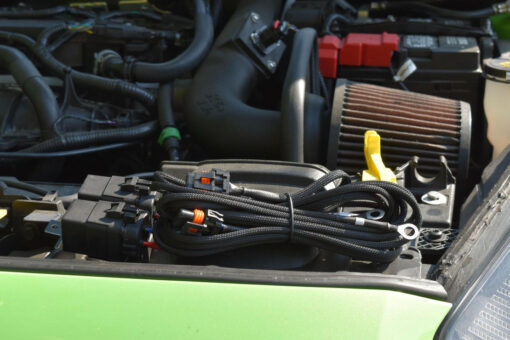

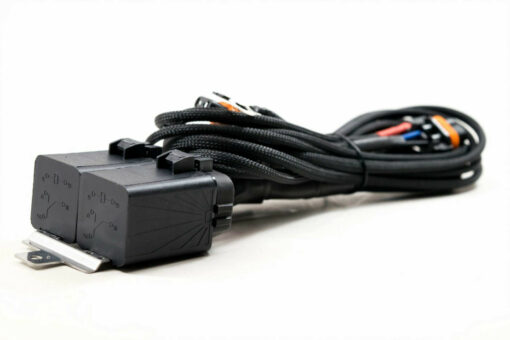

OEM GRADE: Aside from being ahead of the game from a technical standpoint, the HD relay is also a work of art. With it’s wiring protected by abrasion-resistant Techflex mesh sleeving and OEM-style relay cubes held together by a mounting bracket cut from polished stainless – the HD relay will look factory fresh under the hood!

OVERVIEW VIDEO: Check out this helpful video to see how easy a relay harness install is!

TRUSTED: For more than a decade, we’ve worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet’s best selection of high performance automotive and powersport lighting products at the best prices, and we’ve got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we’ve put it to the test on our own cars, trucks, and bikes.

WHAT’S INCLUDED

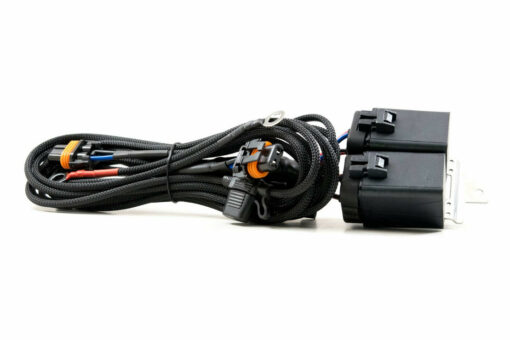

• HARNESS: 1x HD Relay Harness
• WARRANTY: 2 Years (Click for Details)
• NOTE: One harness controls both headlights

COMPATIBILITY

• STOCK BULB SIZE: 9005
• HID SYSTEMS: Low Beams, High Beams, or Fog Lights
• BI-XENON PROJECTORS?: You’ll need High Beam Splitters
• PWM PULSING SIGNAL?: You’ll need a Capacitor Link
• CANBUS SYSTEM?: Use Standalone Canbus or the Mopar Spec harnesses

TECH SPECS

• INPUT: 1x 9005 Male

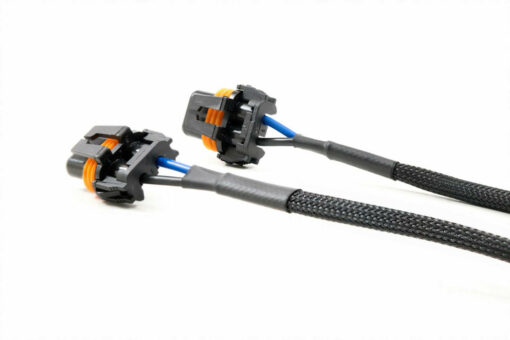

• OUTPUT: 2x 9006 Female

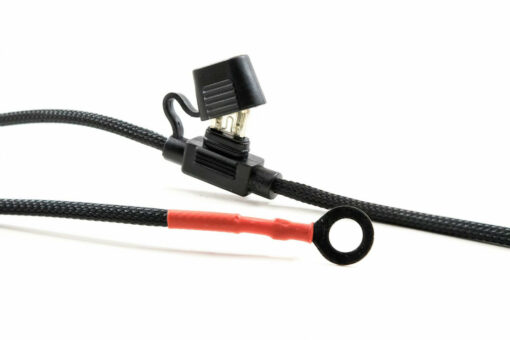

• 12V POWER: 1x Nickel-Plated Ring Terminal
• GROUND: 2x Nickel-Plated Ring Terminals
• FUSE: Inline 20A
