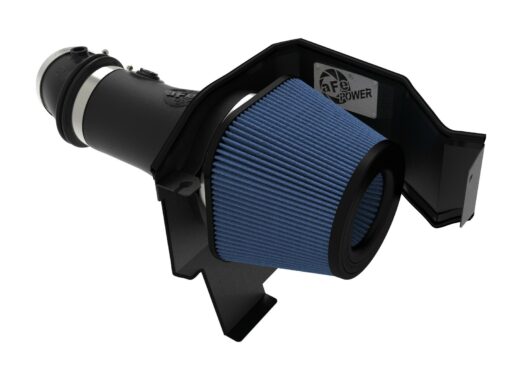

7″ Flange Massive Air Filter:
This intake system utilizes a pre-oiled, 6-3/4″ tall inverted top conical 360-degree radial flow performance air filter with five layers of progressive finer mesh cotton media providing maximum airflow and performance. It provides your engine with the largest amount of high-flowing air and delivers the highest power gains in most cases. This media is perfect for street and/or track use. Its inverted top makes for more filter surface area, resulting in longer service intervals.
Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE (cross-linked polyethylene) material is heat soak resistant and extremely durable.
One-Piece Heat Shield:
A sturdy 18-gauge powder-coated heat shield blocks performance-robbing engine heat. This heat shield requires no assembly and uses factory mounting locations for fast and easy installation.

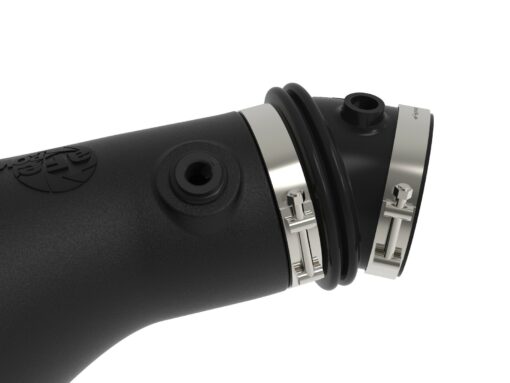

FCA Multi-Air Unit Actuator:
For the 2019-2020 Models, the factory MUA (Multi-Air Unit Actuator) is easily connected to the air intake coupling. All clamps and hose are provided to guarantee correct crankcase flow, avoiding check engine lights and damaging factory hoses and sensors.
Premium stainless steel T-bolt clamps and a flexible bellows silicone coupling are used for strength and durability while also providing the most secure installation available.
Optional Pre-Filter and Rain Shield:
See our optional Pre-filter 28-10243 or Rain shields 54-12808-B (black) and 54-12808-C (Carbon Fiber Finish) to protect the air filter from water falling through the factory hood scoops.
This intake system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

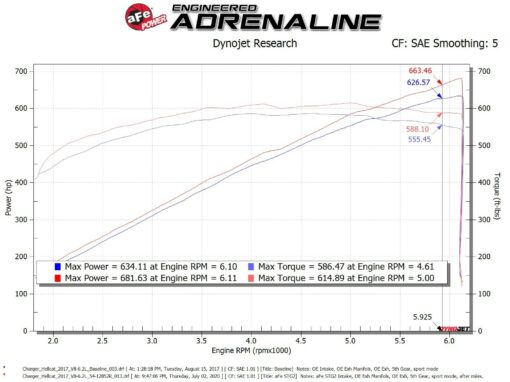

- Dyno-Proven Gains up to +37 HP & +33 Lbs. x Ft. TQ
- Outflows Factory Intake by 28%

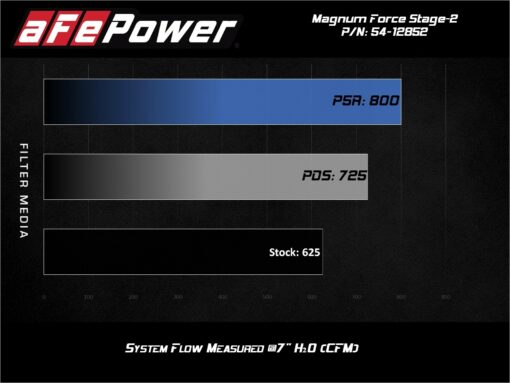

- Measured Flow: 800CFM @ 7” H20
- Dyno Tuned Air Intake Tube
- Powder-Coated One Piece Heat-Shield Utilizes Stock Mounting Locations
- Washable and Reusable Pro 5R Air Filter for Maximum Performance
- Flexible Silicone Elbow Coupling for easy installation and to accommodate engine movement
- Intake is Designed to Work With The Factory Multi-Air Unit Actuator (MUA) on 2019-2020 Models
- No Tuning Required
|Estimated Horsepower Gain||23.59 HP @ 5712 RPM|
|Air Filter Color||Red|
|Air Filter Material||Cotton Gauze|
|Air Filter Outlet Shape||Round|
|Clamp Style||Worm Gear|
|System Type||Cold-Air Intake System|
|Product Style||69 Series Typhoon Kits|
|Intake Pipe Color / Finish||Black|
|Intake Pipe Material||Aluminum|
|Street Legal In All US States||No|
|TUV Approved (Europe)||No|
|Weight||10.9 lb (4.9 kg)|
|Product Box Height||12.5 in (318 mm)|
|Product Box Length||22.25 in (565 mm)|
|Product Box Width||14.25 in (362 mm)|
|California Restricted||Not legal for sale or use in California|
|Mounting Hardware Included||Yes|
|Warranty||1,000,000 Miles/10 Year|
